LEDSL leading-edge lighting technology
Thanks to their great performance and outstanding energy efficiency, the use of LEDs to illuminate demanding environments is becoming ever more common. Compared to conventional lamps, light emitting diodes have a whole range of technological, economic and ecological advantages: low heat generation, minimal power consumption and an almost unlimited life expectancy.

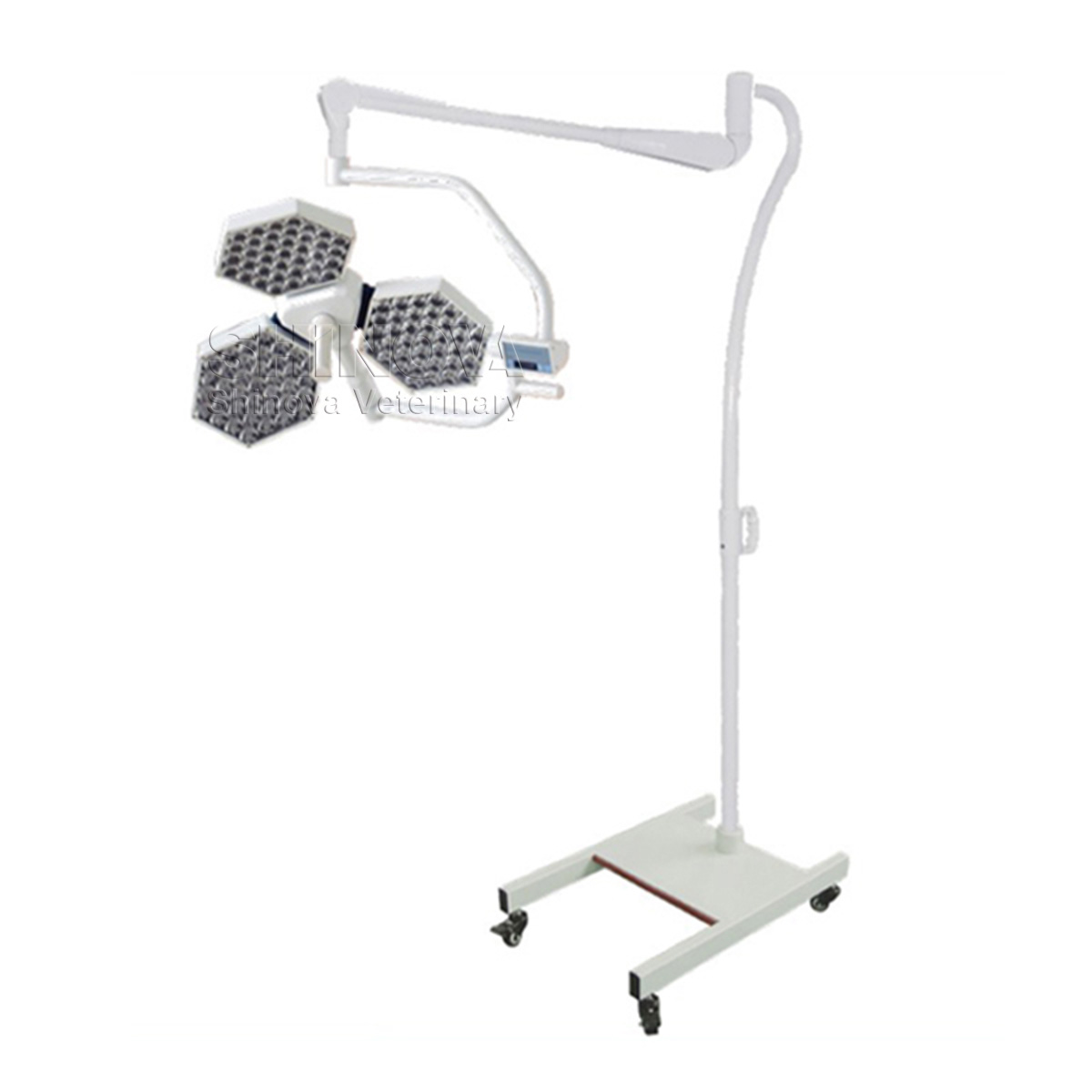

LEDSL-3S combines these characteristics. The result: unparalleled performance.
● Precise
Uniform,homogeneous lighting in surface and deep cavity procedures thanks to LEDSL-3S’s innovative shadow control.
● Simple
Our ergonomic,sterile operating concept allows for the simple and flexible control of all functions by the surgical team.
● Durable
Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection.
● Efficient
Environmentally proactive:low power consumption and durable LEDs minimize the impact on our precious resources.
☆UNMATCHED SHADOW MANAGEMENT OPTIMIZES CONCENTRATION AND SURGICAL TEAM EFFICIENCY
Shinova has harnessed the far-reaching potential of the multi-lens matrix to virtually eliminate shadows. The LEDSL-3S series’ sover lapping fields of light and multiple patterns - selectable based on the surgical situation - minimize shadows and redirect the full selected intensity to the surgical site.
The result is up to 20% more light in deep cavity situations
☆STERILE CONTROL OPERATIONS
l One of the innovative characteristics of LEDSL-3S series: the sterile control concept enables the surgical team to operate
all important functions intuitively, quickly and simply - either on the light heads or via a wall control panel.
l On and off-switch
l Dimming with integrated Endo mode
l Shadow management
☆OPTIMIZED AIR FLOW DESIGN FOR BETTER HYGIENE
With its open design and superior ventilated ceiling tolerance, LEDSL-3S ensures that perfect operating conditions are created and hygienic requirements are fulfilled. The airflow surface under the ventilated ceiling is minimized and the reduced heat generation ensures a low turbulence displacement stream under the light head.
☆Long life lighting
LED light source life of up to 30,000 hours or more, with an average life of an ordinary light shadowlesslamp halogen 30 times, and each LED can be individually replaced, to ensure maximum use of economy.
☆Perfect Cold Light Effect
LED light source does not produce infrared, the temperature rise above surgeon’s head is less than 2°C, meanwhile very low temperature rise above the operation field avoids the patients’ fluid loss. Thus solve the problem of ussatisfactory wound healing because of higher temperature rise produced by ordinary operating lamp
Especificaciones
Illuminance: ≥120,000Lux ,
Color temperature: 3500±200K , 4000±200K , 4500±200K, 5000±200K
Color reduction index: 96
Total irradiance: 380W/m2
Spot diameter: 200~350mm
Illuminance depth: 1020mm
lamp head diameter: 700mm
Rated power of bulb: 3.2v/1w
LED Service life of illuminant: 30,000h
Configuraciones
☆Packing List
1、Installation board 1
2、Spring arm 1
3、Balancing siphon 1
4、Lamp head siphon 1
5、Lamp head 1
6、Antisepsis handle 1
7、Fuse: RTT-2A 2
8、Instruction 1
9、Qualified Certificate 1
