    SHINOVA
    Capno-T
    Monitor de CO2
    ¡Obtenga el Precio Promocional!
    Dentro de 15 días contra pago
    T/T, L/C, Paypal, Cash, Other
    1.00

Descripciones

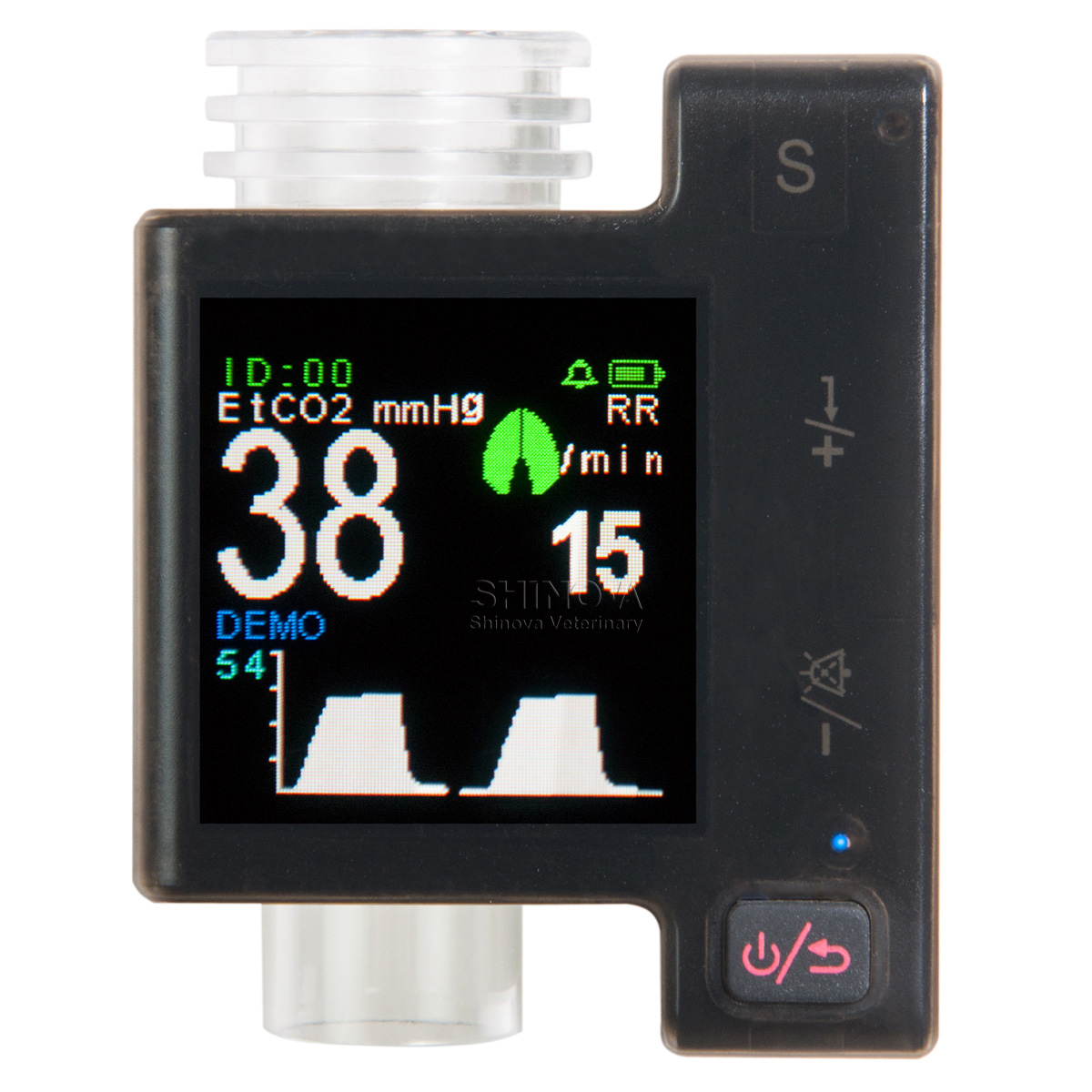

Pocket mainstream capnograph (Capno-T) can monitor two physiological parameters for the patient at the same time: End tidal CO2 concentration (EtCO2), Respiration Rate (RR).


Especificaciones

EtCO2

Method: Creative proprietary non-dispersive InfraRed Spectroscopy

Range: 0~150mmHg or 0~20kPa or 0~20% (v/v)

Accuracy:         ±2mmHg for EtCO2 range 0 - 40mmHg

                   ±5% for EtCO2 range from 41 - 70mmHg

                     ±8% for EtCO2 range from 71 - 100mmHg

              Over 100mmHg ±10%

Update/Averaging Time: Option of every breath

Warm Up Time:

Memory:   24 hours on Screen Trend and Numeric



Respiration Rate

Range:     3 - 150 rpm

Accuracy: ±1% of reading or ±1 rpm whichever is greater

Memory:   24 hours on Screen Trend and Numeric

Sensor:  Adapter for intubated Patients



Power

AC Input:  100V~250V, 50Hz/60Hz to 5VDC Adapter with 5V mini USB adapter Cable.



Battery

Type: Built-in rechargeable lithium battery pack (3.7V, 1350mAH)

Charging Time:        4 hours from flat

Operating Time:        6 hours on full charge



Operating Conditions

Temperature:    5 to +40oC

Humidity:   30%~75%

Atmospheric pressure: 86~106 kPa



Storage Conditions

Temperature:             -20 to +55oC

Relative Humidity:    93% (non-condensing)



Dimensions of Monitor

Size:  55 x 44 x 44mm (W x H x D)

Weight: 80g (including lithium battery and adult airway adaptor)
