Descripciones

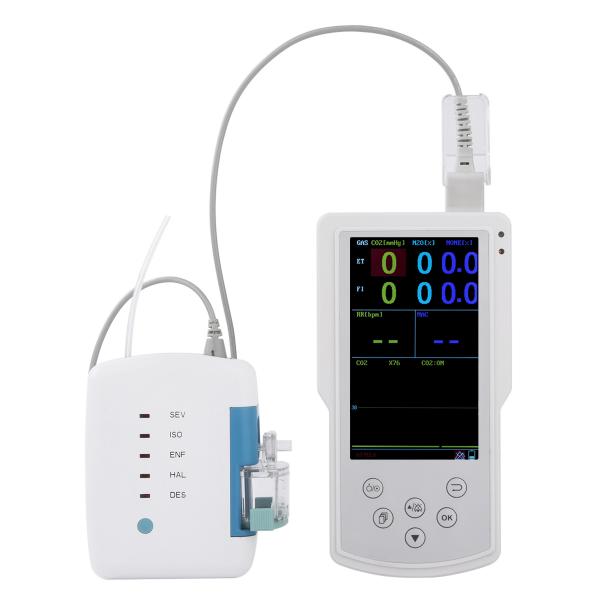

5” color LCD display with 480*720 resolution

Easy to learn and use, simplified menus and dedicated functions keys

Rechargeable high capacity built-in Li Battery, continuously working forover 8 hours

Designed for low tidal volumes with high breath rates for a wide range of clinical applications

Real-time and continuous measurement of inspired and expired gas concentrations and respiratory rate

Suitable for adults, pediatrics and neonates in a range of clinical environments including the OR, ICU, Ambulance, and Transportation.

Especificaciones

Transducer Type	Multigas analyzer
Sample Rate	100mL/min,±10mL/min
Principle of Operation	Non-dispersive infrared(NDIR), No moving parts
Initialization Time	20 sec, full specifications within 60 sec.
Calibration	No routine user calibration required
Compensation	Automatic for atmospheric pressure, temperature
Rise Time	CO2
Respiratory Rate	Range	3to150 Breaths Per Minute(BPM)
	Accuracy	±1 breath
Breath Detect	Adaptive threshold, minimum 1% Co2 change
Agent Threshole	Agent 0.15 vol%
Measurement Accurancy	Gas Type	Range	Accuracy
	CO2	0 - 10%	±(0.2 vol% +2% of reading)
		10 -15%	± (0.3 vol% +2% of reading)
	N2O	0 - 100%	± (2vol% +2% of reading)
	ISO	0 - 6%	± (0.2vol% +2% of reading)
	ENF	0 - 6%	± (0.2vol% +2% of reading)
	SEV	0 - 8%	± (0.2vol% +2% of reading)
Interface	RS-232 operating at 9600 bps
Voltage Requirements	5.0 VDC ±5%
Power Consumption	Less than 5 Watts typical
Temperature and Humidity	Operating: 0-40℃, 10-90% RH, Non-condensing
	Storage: -40-70℃,
Size	33*23*9cm
Weight	2KG
